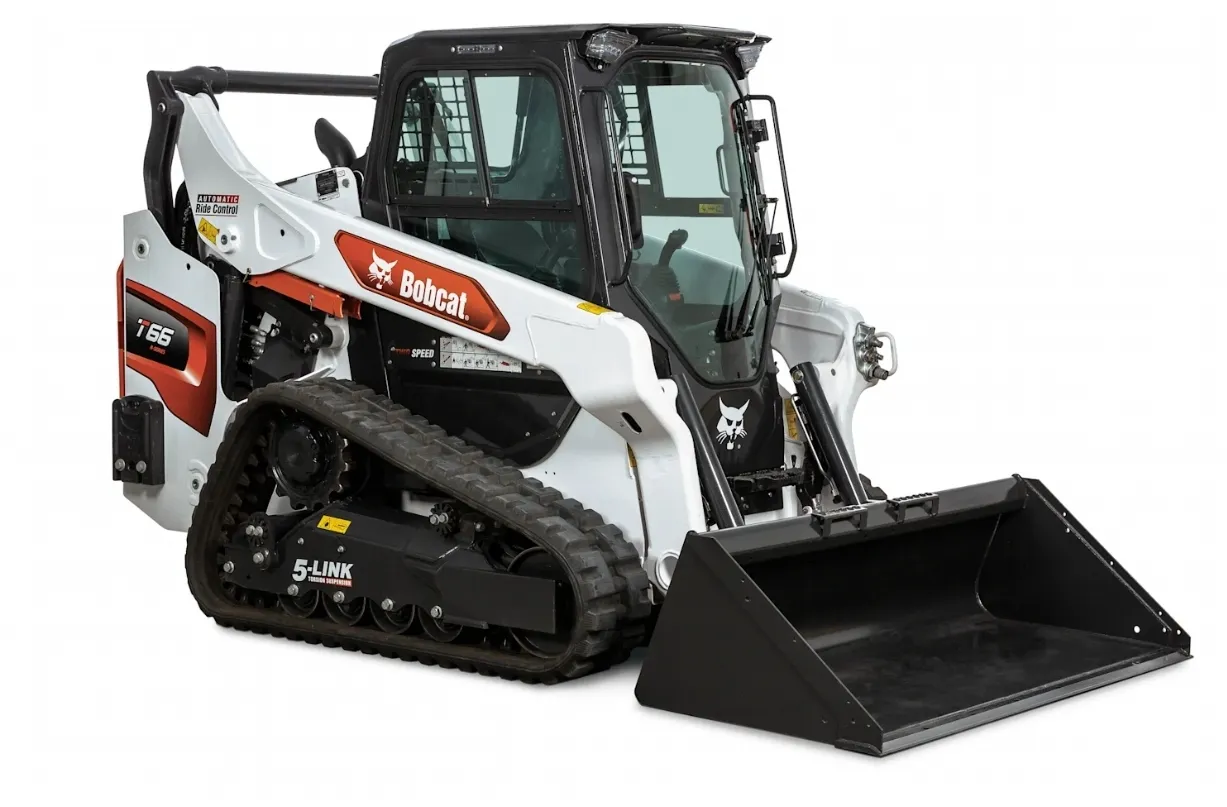

BOBCAT T66 With AC/ Heat / Backup Camera

Performance

• Engine Power: 74 hp (diesel, Tier 4 compliant)
• Rated Operating Capacity (ISO): 2,450 lb
• Tipping Load: 7,000 lb
• Operating Capacity (50% of tipping load): approx. 3,500 lb
• Operating Weight: 8,840 lb
• Travel Speed: 7.2 mph (standard) / 10.2 mph (two-speed option)
• Ground Pressure: 5.9 psi

Hydraulic System

• Standard Auxiliary Flow: 17.6 gallons per minute
• High-Flow Option: 26.9 gallons per minute
• Fuel Tank Capacity: 28.3 gallons

Dimensions

• Length with Bucket: 134.9 in
• Width (over tracks): 67 in
• Height to Top of Cab: 80.5 in
• Height to Hinge Pin: 120 in
• Track on Ground Length: 54.3 in
• Turning Radius: 81.5 in

Design & Features

• Enclosed ROPS/FOPS cab with optional HVAC and suspension seat
• Vertical-lift path for higher reach and better dump height
• Two-speed travel for faster movement between job sites
• Durable undercarriage with cast-steel rollers and improved ride stability
• Intuitive control system with selectable joystick controls
• Easy maintenance access through swing-open tailgate and top panels
